Overview
Application:LASER CUTTING
Condition:New
Cutting Area:1500*3000mm
Graphic Format Supported:AI, BMP, DXF, PLT
Cooling Mode:WATER COOLING
Place of Origin:Zhejiang, China
Laser Source Brand:RAYCUS
Servo Motor Brand:Inovance
Control System Brand:Cypcut
Optical Lens Brand:Wavelength
Applicable Industries:Printing Shops, Construction works , Advertising Compa
Video outgoing-inspection:Provided
Core Components:Motor
Configuration:gantry type
Feature:Water-cooled
Position:Red-light position determination
Cutting auxiliary gas:compressed air,nitrogen,oxygen
Min.line Width:0.1mm
Whole machine power:<14KW
Laser Type:Fiber Laser
Cutting Speed:120m/min
Cutting Thickness:6-25mm
CNC or Not:Yes
Control Software:Cypcut
Brand Name:GXUCNC
Laser Head Brand:Empower
Guiderail Brand:HIWIN
Weight (KG):4000 KG
Key Selling Points:Energy saving
Warranty:3 years
Machinery Test Report:Provided
Warranty of core components:3 years
Mode of Operation:continuous wave
Products handled:Sheet Metal
After-sales Service Provided:Engineers available to service machinery overseas
Cutting area:1500mm*3000mm
The laser wavelength:1070nm
Working voltage:380V/50Hz/60Hz/60
Certification:ce
After-sales Service:Online or go on-site
Supply Ability
Supply Ability20 Set/Sets per Month
Packaging & delivery
- Packaging Details:
Standard woodern case ,If you want load more,we can choose welder holder.
- Port:
Ningbo,Shanghai or customized as your requirement

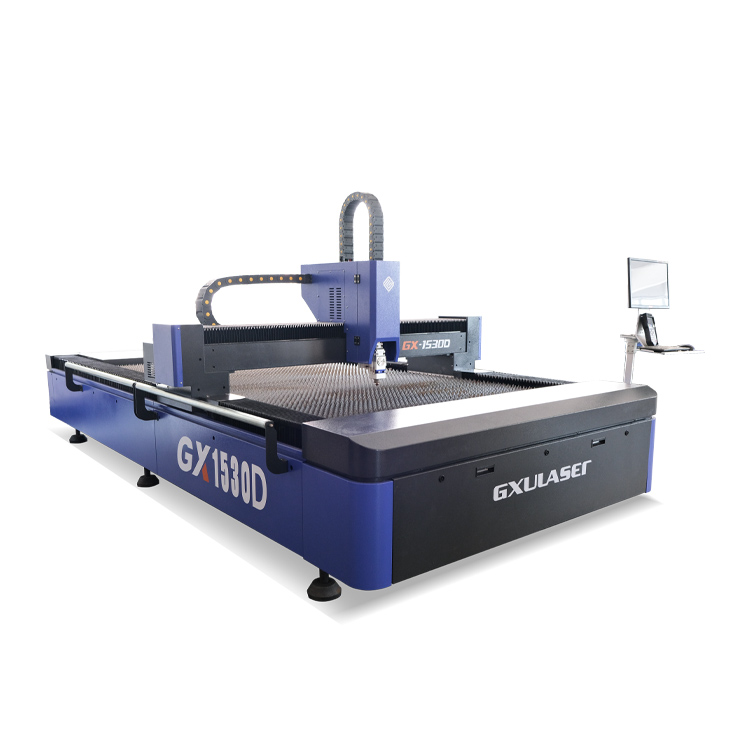

Picture Example:
Lead time:
| Quantity(sets) | 1 - 1 | >1 |
| Lead time (days) | 7 | To be negotiated |
Machine datails
|
Cooling mode
|
Water cooled
|
Repeat position accuracy
|
±0.05mm
|
|
Laser Power
|
1000-3000W
|
Drive motor
|
Servor Motor
|
|
Running Speed
|
90m/Min
|
Power supply
|
220V/50HZ
|
|
The laser wavelength
|
1070nm±10nm
|
Cutting thickness:
|
6~25mm
|
|
Min. Line Width
|
0.1mm
|
Aimed and positioning
|
Red light
|
|
Cutting range:
|
1500×3000mm
|
Cooling mode
|
Water cooled
|
|
Cutting range
|
1500*3000mm
|
N.W.
|
3000Kg
|
Machine features
1. The fuselage of plate welding structure is rough machined after high temperature annealing and finished after secondary vibration aging treatment; Aviation aluminum: heavy steel die pressure casting is adopted to ensure the strength, accuracy and service life of the machinetool;
2. Imported planetary helical gear reducer, high precision rack and pinion and linear guide ensure stable, low noise and reliable performance in high speed operation;
3. With servo drive control, the torque is stronger, the running speed is faster and more stable;
4. Automatic follow smoke exhaust system, good smoke extraction affect, saving energy;
5. Adopting high quality laser cutting head and laser lens, the focusing spot is smaller, the cutting line is finer, the work efficiency is higher, and the processing quality is better;
6. Professional laser cutting CNC control system with intelligent layout function, simpler operation and higher efficiency.
Application
Widely used in kitchen utensils, advertising signs, lighting hardware, electrical cabinets, auto parts, machinery and equipment,electrical equipment, aerospace, shipbuilding, elevator manufacturing, rail transit, textile machinery, precision parts, sheet metal processing and other metals processing industry.
1.100% quality testing, that is, each machine has been tested strictly in mechanical assembling and performing before delivery;
2.100% sample testing, that is, each machine has been tested by the processed sample before delivery;
