Overview
Condition:New
Usage:Laser Welding
Brand Name:GXUCNC
Pulse Width:0.1-20ms
Focal Spot Diameter:0.1-2.0mm
Laser Head Brand:N/A
Guiderail Brand:N/A
Weight (KG):300 KG
Applicable Industries:Hotels, Building Material Shops, Machinery Repair Sho
Video outgoing-inspection:Provided
Core Components:Other
Applicationv:Handheld Fiber Laser Welding Machine
The laser wavelength:1080nm
Feature:Quick Speed High Accuracy
Laser type:Fiber Laser Source
Max. Output Power:2000W
Place of Origin:Zhejiang, China
Single Pulse Energy:90J
Wavelength:1080nm
Warranty:3 years
Laser Source Brand:Chao qiang wei ye
Servo Motor Brand:N/A
Control System Brand:N/A
Key Selling Points:Easy to Operate
Machinery Test Report:Provided
Marketing Type:Ordinary Product
Warranty of core components:3 years

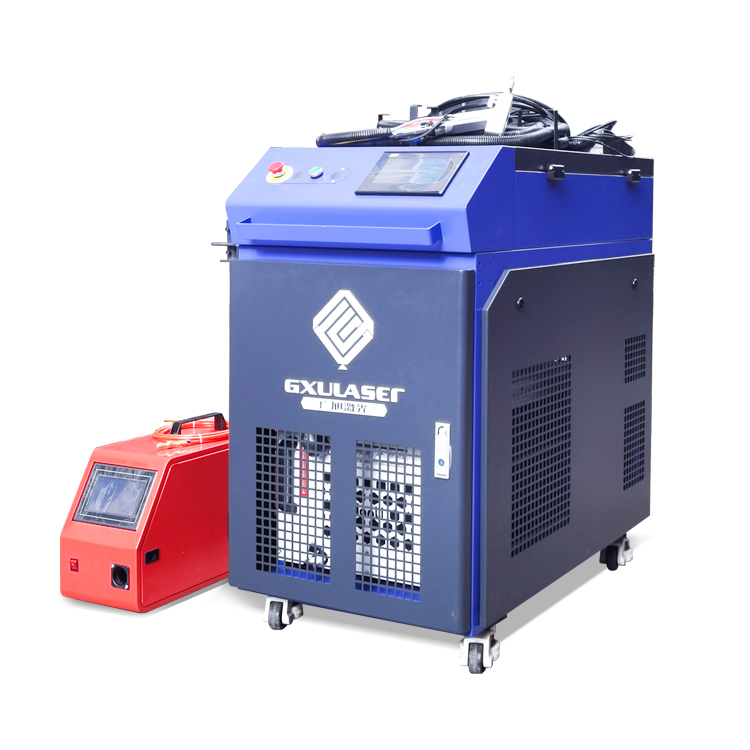

Product name:Handle Fiber Laser Welder
Max laser power:2000W
Fiber length:10/15m
cooling mode:Water Cooling
Laser power:1000W 1500W 2000W (optional)
After Warranty Service:Support to go on-site or online
Packaging & delivery
- Packaging Details:
"Standard package: PP film wrapped;export wooden crate is optional;
Or other requirements as you want."
- Port:
Ningbo/Shanghai/Guangzhou
Picture Example:
Lead time:
| Quantity(sets) | 1 - 1 | >1 |
| Lead time (days) | 7 | To be negotiated |
every machine, including every machine parts, we must be tested carefully, and every machine machine before delivery.
Machine datails
|
Max laser power
|
1000-2000W
|
Working Mode
|
Continuous/Modulation,
|
|
Welding mode
|
Continuous, Modulation, TIG, QCW
|
Laser wavelength
|
1080 nm
|
|
Fiber Length
|
10/15 m
|
Protective gas
|
Argon Ar, Nitrogen N2
|
|
Output header type
|
QBH
|
Auxiliary tools
|
Automatic wire feeder (optional)
|
|
Fiber core diameter
|
50 / 100μm
|
Operating Voltage
|
AC220V/50HZ AC220V/50HZ AC380V/50HZ
|
|
cooling mode
|
Water cooling
|
Total power
|
6-10KW
|
Machine features
1. Laser welding can be carried out on long-distance, large workpieces, and products with various styles;
2. The heat-affected area is small during welding, and it will not cause deformation, blackening, and traces on the back of the workpiece;
3. Laser welding equipment suitable for large workpiece products and large-scale production products to achieve efficiency;
4. The whole machine has low power, stable performance, high beam quality, fiber output, high reliability, long life, and high photoelectric conversion efficiency;
5. The width of the welding seam can be customized, and wire feeding can be used. Compared with argon arc welding, the efficiency is increased by more than 50%. After welding, it does not require or a small amount of grinding. Compared with traditional arc welding, handheld laser welding machines can save power by 80%~90% About, the processing cost can be reduced by about 30%.
6. The equipment is equipped with multiple safety alarms, automatically locks the light after removing the workpiece, and has high security.
7. The welding wire feeding function is optional to meet the welding of various workpieces with large gaps in incoming materials.
Application
Welding of thin metal plates-stainless steel, carbon steel, applicable products-laser welding of all kinds of sheet metal, molds, chassis, water tanks, kitchen and bathroom products, all kinds of five-gold lighting, advertising signs, door and window frames.
It is widely used in kitchens, household appliances, advertising, molds, stainless steel doors and windows, handicrafts, household goods, furniture, auto parts and many other industries.
1.100% quality testing, that is, each machine has been tested strictly in mechanical assembling and performing before delivery;
2.100% sample testing, that is, each machine has been tested by the processed sample before delivery;
Certifications
We are certified by many parties, has multiple patent certificates.professionalism is guaranteed, the quality is worthy of your choice.
Products Recommended
Related Products
Please feel free to send us an inquiry or message to know more about the machine.
We specialize in CNC routers and laser machines for 16 years.You haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
Company Profile
Welcome to Visit Our Factory
Our Services
Support Door to Door
2. 2 years warranty for machine.
3. After sale office in differ country
4. Life time maintenance
5. Free online technical support and install train.
Exhibition
FAQ
Q: How about after-sales service?
A: 1. We can provide free training in our company. 2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.
Q: How about the warranty?
Q: What should I do when I have some problems or questions?
A: Pls don’t hesitate to contact us, we will reply u ASAP.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.
Q: Which is the most suitable model machine for me?
A: Pls tell us your materials, thickness, size and business industries.We will select the machine model that is right for you.
