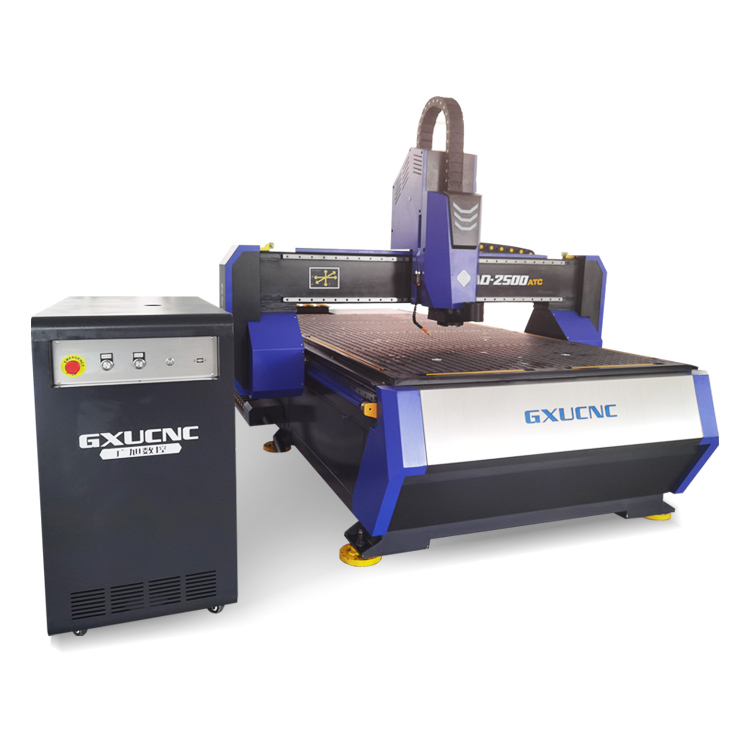

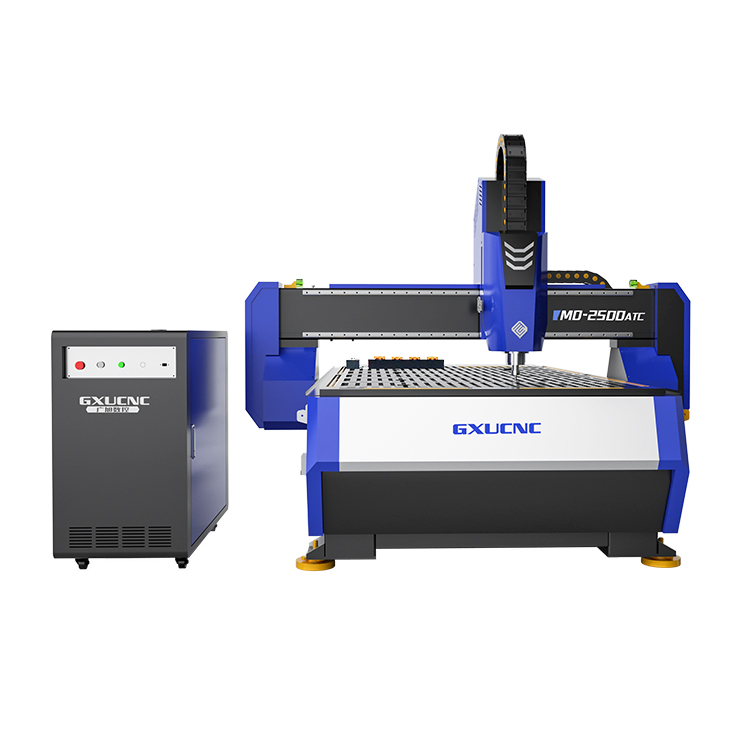

MD 2500 ATC Soft Metal Cutting Carving CNC Router

Short Description:

 Adopt T-style body structure and crossbeam transmission design, main body with Industrial welding technology, quench dealing method and then with high precision milling maching to build. All the accessories are all made one time by 5 axis machining center to ensure machine’s rigidity and


Product Detail

Product Tags

Overview

Condition:New
Range of Spindle Speed(r.p.m):1 - 24000 rpm
Positioning Accuracy (mm):0.01mm
Number of Axes:3
No. of Spindles:Single
Working Table Size(mm):1300×2500
Machine Type:CNC Router
Travel (X Axis)(mm):1300 mm
Travel (Y Axis)(mm):2500 mm
Repeatability (X/Y/Z) (mm):0.01 mm
Spindle Motor Power(kW):6
CNC or Not:CNC
Place of Origin:Zhejiang, China
Brand Name:GXUCNC
Voltage:AC220/50Hz
Dimension(L*W*H):3.05m*2.1m*1.85m
Power (kW):10
Weight (KG):1800

Control System Brand:NC Studio, Mach3, DSP
Warranty:2 years
Key Selling Points:High precision
Applicable Industries:Printing Shops, Other, Advertising Company, Funiture Factory
Video outgoing-inspection:Provided
Warranty of core components:2 years
Core Components:Motor
Product name:Cnc Engraving Machine
Working area:1300x2500mm
Total Spindle Power:6.0Kw
Running Speed:50m/Min
Processing Accuracy:±0.05mm
Repeat Processing Accuracy:±0.01mm
Driver Motor:Servo Motor
Power Supply:380V/50Hz
N.w:1800KG
Service Provided:Online Support

Machine datails

Working Area

1300×2500mm

Repeat position accuracy

±0.01mm

Total Spindle Power

6.0Kw

Drive motor

Servo Motor

Running Speed

50m/Min

Power Supply

380v/50HZ

Processing Accuracy

±0.01mm

N.W

1800Kg

Machine features

1.  MD2500 adopt T-style body structure and crossbeam transmission design, main body with Industrial welding technology, quench dealing method and then with high precision milling maching to build. All the accessories are all made one time by 5 axis machining center to ensure machine's rigidity and accuracy.

2.  X, Y-axis with imported high-precision rack, Z-axis with imported high-precision grinding grade ball screw.

3.  Spindle with high precision, high speed, constant torque, low beating, strong stability, long lifetime characteristics.

4.Supporting G code and PLT code format generated by Type 3, MASTERCAM, CASMATE, Artcam, AUTOCAD, UG, CorelDraw and other CAD / CAM software.

1
2
3
4
5

Product Details

6

Support Door to Door

1. 24/7 online service .

2. 2 years warranty for machine.

3. After sale office in differ country

4. Life time maintenance

5. Free online technical support and install train.

6. We have a professional and experienced after-sales team.

7. We support door-to-door after-sales service.

8. In order to effectivelysolve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
