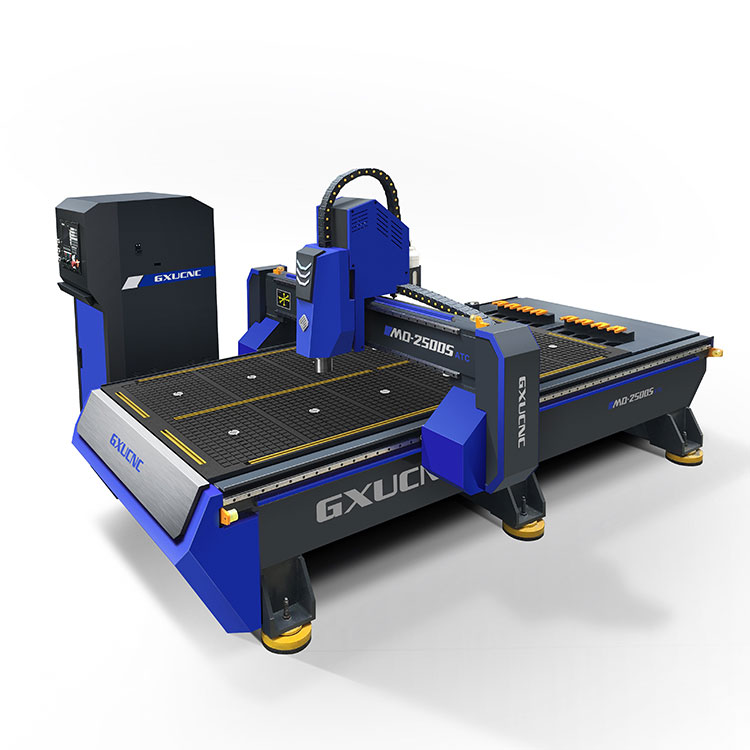

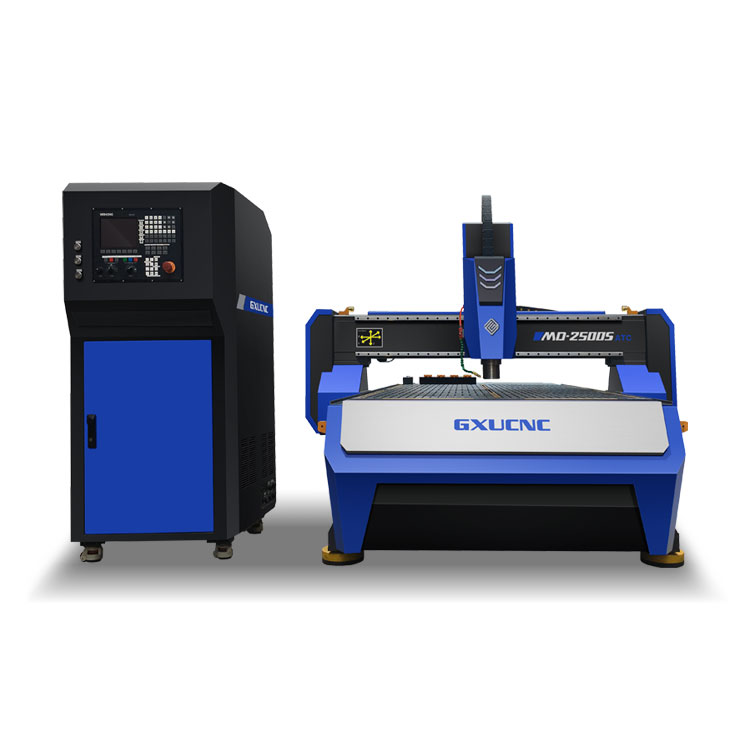

MD 2500S ATC Muti- function High Precision 1325 CNC Router

Short Description:

Suitable for wood, Acrylic, aluminum, Copper, Aluminous model board, Plastic, and Barbon fiber composite materials, carving ,milling, cutting and whittling, Widely used in soft metal and sheet metal processing areas.

Send email to us

Product Detail

Product Tags

Overview

Condition:New
Range of Spindle Speed(r.p.m):1 - 24000 rpm
Positioning Accuracy (mm):0.01mm
Number of Axes:3
No. of Spindles:Single
Working Table Size(mm):1300×2500
Machine Type:CNC Router
Travel (X Axis)(mm):1300 mm
Travel (Y Axis)(mm):2500 mm
Repeatability (X/Y/Z) (mm):0.01 mm
Spindle Motor Power(kW):7.5
CNC or Not:CNC
Place of Origin:Zhejiang, China
Brand Name:GXUCNC
Voltage:AC220/50Hz
Dimension(L*W*H):3.05m*2.1m*1.85m
Power (kW):11
Weight (KG):1800

Control System Brand:NC Studio
Warranty:2 years
Key Selling Points:High Rigidity
Applicable Industries:Building Material Shops, Printing Shops, Construction works , Other, Furniture Factory
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:2 years
Core Components:Motor
Name:Cnc Engraving Machine
Working area:1300MM*2500MM
Travel speed:45M/M
Processing precision:±0.05MM
Registration accuracy:±0.01MM
Running speed:50m/min
Control system:Weihong NcStudio V8
Cooling system:Circulation water
After Warranty Service:Online or go on-site

Machine datails

Working Area	1300x2500mm	Repeat position accuracy	±0.01mm
Total Spindle Power	7.5/9Kw	Drive motor	Servor Motor
Running Speed	50m/Min	Power supply	AC380/50Hz
Processing Accuracy	±0.05mm	N.W.	1800Kg

Application areas

Machine features

1. Adopt T-style body structure and crossbeam transmission design, main body with Industrial welding technology, quench dealing method and then with high precision milling maching to build. All the accessories are all made one time by 5 axis machining center to ensure machine's rigidity and accuracy.

2. X, Y-axis with imported high-precision rack, Z-axis with imported high-precision grinding grade ball screw.

3. Spindle with high precision, high speed, constant torque, low beating, strong stability, long-life time characteristics.

4. Supporting G code and PLT code format generated by Type 3, MASTERCAM, CASMATE, Artcam, AUTOCAD, UG, CorelDraw and other CAD / CAM software.

5. Straight line 4 tool library.

6.Standard automatic knife calibration.

Support Door to Door

1. 24/7 online service .

2. 2 years warranty for machine.

3. After sale office in differ country

4. Life time maintenance

5. Free online technical support and install train.

6. We have a professional and experienced after-sales team.

7. We support door-to-door after-sales service.

8. In order to effectivelysolve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
