Overview
Condition:New
Range of Spindle Speed(r.p.m):1 - 24000 rpm
Positioning Accuracy (mm):0.02mm
Number of Axes:3
No. of Spindles:Single
Working Table Size(mm):1300×2500
Machine Type:CNC Router
Travel (X Axis)(mm):1300 mm
Travel (Y Axis)(mm):2500 mm
Repeatability (X/Y/Z) (mm):0.02 mm
Spindle Motor Power(kW):6
CNC or Not:CNC
Place of Origin:Zhejiang, China
Brand Name:GXUCNC
Voltage:AC220/50Hz
Dimension(L*W*H):3.05m*2.1m*1.85m
Power (kW):6
Weight (KG):2000
Control System Brand:NC Studio, DSP, RichAuto
Warranty:2 years
Key Selling Points:Multifunctional
Applicable Industries:Building Material Shops, Printing Shops, Other, Advertising Company
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:2 years
Core Components:Motor
Working area:1300MM*2500MM
Driving system:Servo Driver Motors
Travel speed:45M/M
Processing precision:±0.05MM
Registration accuracy:±0.02MM
Invertor:BEST 7.5KW
Compatible software:Type3/Arcam/Proe/UG etc
Weight:2600kg
Certification:CE ISO、
Machine datails
|
Working area |
1300*2500 mm |
|
Spindle power |
4* 6.0 Kw air cooling spindle (optional) |
|
Running speed |
60m/min |
|
Processing accuracy |
±0.02 |
|
Repeat position accuracy |
±0.02 |
|
Drive motor |
Servo Motor driving system with Shimpoo Reducer |
|
Power supply |
AC380V/ 50Hz/3PH |
|
N.W. |
2000 Kg |
|
X, Y-axis transmission mode |
Germany Herion Helical Gear rack |
|
Z-axis transmission mode |
High precision ball screw TAIWAN PMI |
|
Inverter |
7.5KW inverter |
|
Table |
Vacuum adsorption table or Aluminium T-slot table |
|
Control system |
Shannon Industrial for woodworking and Hand wheel |
|
Guide rail |
TAIWAN HIWIN 30mm X,Z axis 25mm, Taiwan TBI ball screw; |
|
Machine dimension |
L3.2m W2.1m H7.1m |
|
Compatible software |
Type3/Arcam/Proe/UG etc |
|
lubrication system |
Automatic lubricating device |
|
Tool setting |
Automatic surface tool setting device |

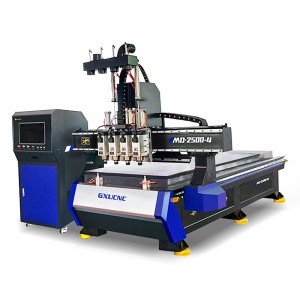

About MD-2500-4 3D 1325 CNC wood working router machine
MD-2500-4, it is a 3D 1325 CNC wood working router machine supported by air cooling spindle 6KW, AC servo motor driving system, professional woodworking control system.
----- High performance, Rigidity lathe bed structure and durable, user friendly.
------4* 6kw air cooling spindle, high speed of daily working: cutting, processing, drilling, sloting etc.
------Very good for woodworking craftmenship, wood furniture, cabinet,desk, wood letters, signage and so on.
Remarks: This rotary axis is optional on the basis of additional cost of your specific demanding, it can perform some cutting, drilling, engraving on different cyclinder or some pillars, the pillars can used for furniture legs, ladders, balcony and handrail etc.
Support Door to Door
1. 24/7 online service .
2. 2 years warranty for machine.
3. After sale office in differ country
4. Life time maintenance
5. Free online technical support and install train.
6. We have a professional and experienced after-sales team.
7. We support door-to-door after-sales service.
8. In order to effectivelysolve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
-
MD 2500S ATC Muti- function High Precision 1325...
-

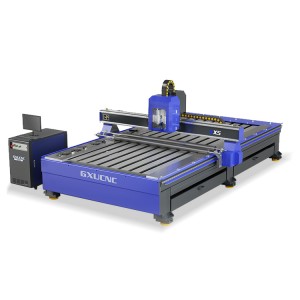

X5 Aluminum Veneer Cutting Carving CNC Router
-
