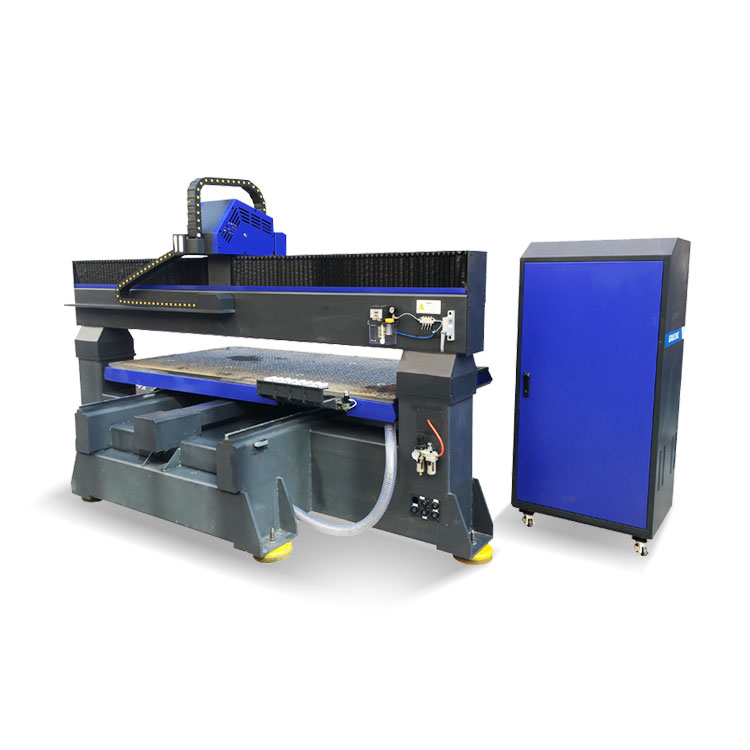

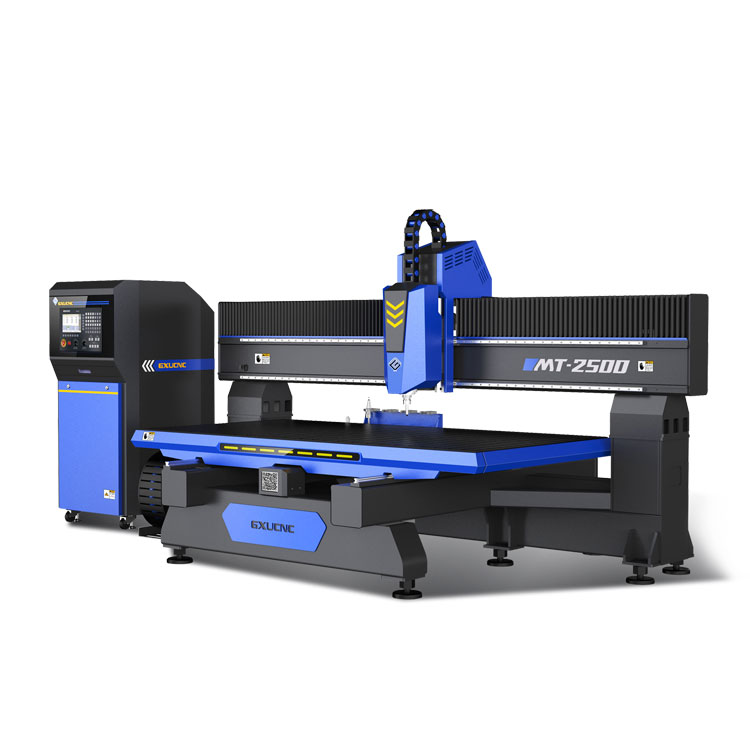

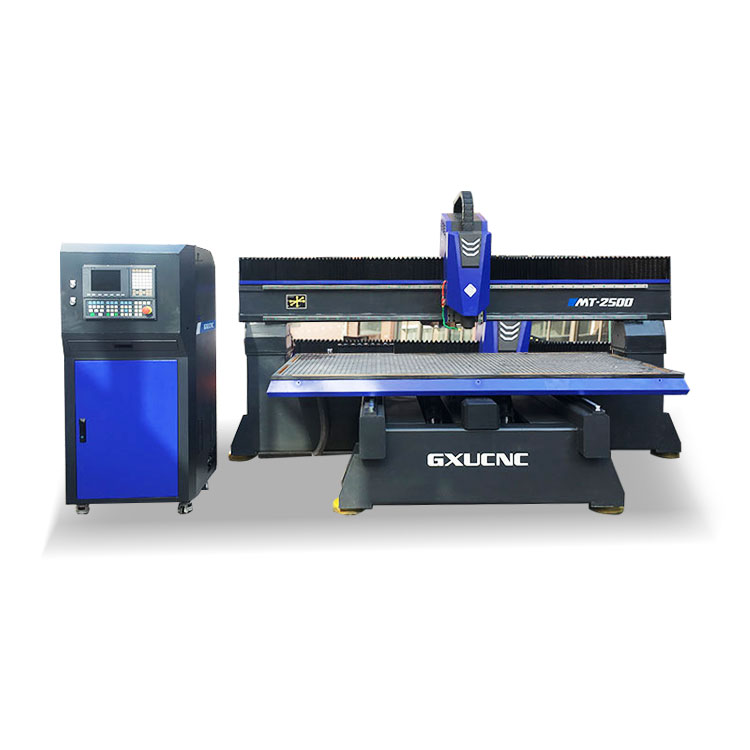

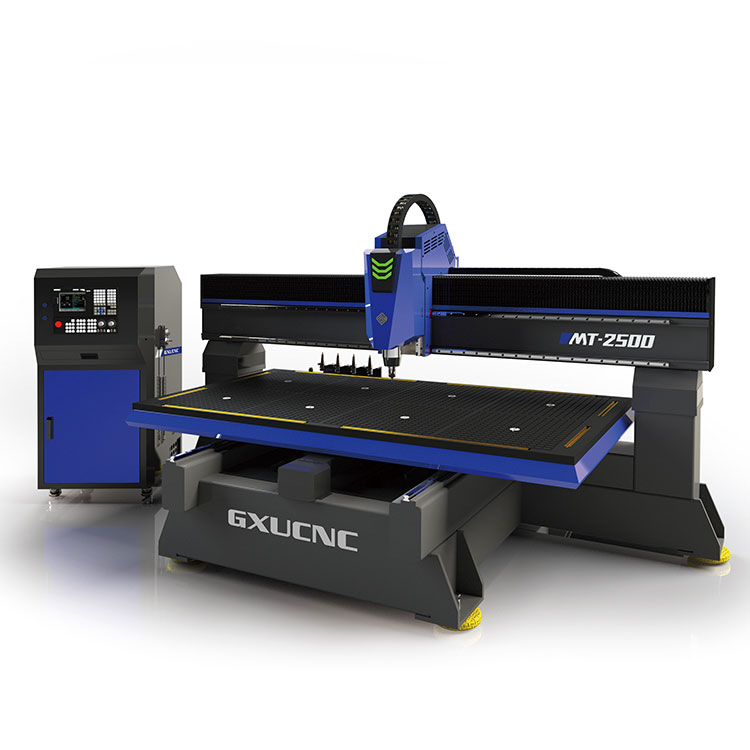

MT 2500 Multi- Function Heavy- Duty CNC Processing Center

Short Description:

THK linear guide rail (or PMI from Taiwan)and sliding block from Japan, automatic lubrication.

Product Detail

Product Tags

Overview

Condition:New
Range of Spindle Speed(r.p.m):1 - 24000 rpm
Positioning Accuracy (mm):0.01mm
Number of Axes:3
No. of Spindles:Single
Working Table Size(mm):1300×2500
Machine Type:CNC Router
Travel (X Axis)(mm):1300 mm
Travel (Y Axis)(mm):2500 mm
Repeatability (X/Y/Z) (mm):0.01 mm
Spindle Motor Power(kW):7.5
CNC or Not:CNC
Place of Origin:Zhejiang, China
Brand Name:GXUCNC
Voltage:AC220/50Hz
Dimension(L*W*H):3.05m*2.1m*1.85m
Power (kW):11
Weight (KG):3000
Power Supply:380v/5hz

Control System Brand:Syntec
Warranty:2 years
Key Selling Points:Multifunctional
Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction works , Other, Advertising Company
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:2 years
Core Components:Motor
Product Name:Advertising Cnc Engraving
MachineSpindle motor:Water-cooling ATC spindle
Transmission Mode:Imported ball screw
Guide rail:Imported linear guide
Working table:Partition vacuum
Driving system:Servo
Running Speed:18M/min
Repeat position Accuracy:0.01mm
service provided:online support

Machine datails

Working Area	2440×1270mm	Drive system	Servo
Total Spindle Power	7.5Kw (9.0Kw optional)	Controlling System	SYNTEC / Siemens
Transmission Mode	Imported ball screw	Running Speed	18m/Min.
Guide rail	Imported linear guide	Repeat position accuracy	0.02mm
Spindle motor	Water-cooling ATC spindle	Processing Accuracy	±0.05mm
Feeler device	Automatic Surface Detector	Power Supply	AC380/50Hz
Working table	Partition vacuum adsorption table	N.W.	2500Kg

Machine features

1. Taiwan SYNTEC controlling system.

2. THK linear guide rail (or PMI from Taiwan)and sliding block from Japan, automatic lubrication.

3. All three axis driven by direct connection of rolling ball screw and step motor, higher accuracy and longer lifetime than syn-chromic belt.

4. Using industrial heavy-duty steel structure design, in strict accordance with the requirements of annealing to stress, to ensure the best body strength and rigidity.

5. Using fixed frame of longmen, mesa mobile transmission mode, the equipment is stable and little vibration;

Application areas

Advertisement, electron, woodworking furniture, building materials.

LED sign, plexiglass product, aluminum high optical product, cabinet door.

Support Door to Door

1. 24/7 online service .

2. 2 years warranty for machine.

3. After sale office in differ country

4. Life time maintenance

5. Free online technical support and install train.

6. We have a professional and experienced after-sales team.

7. We support door-to-door after-sales service.

8. In order to effectivelysolve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
